Enhanced Usability and Features of the AP Series Adjustable Wrench #
The AP Series Specialist Adjustable Wrench is engineered for professionals who require reliability and versatility in demanding environments. This series incorporates several design enhancements to improve both performance and user comfort.
Key Features #
- Industrial 15° Angle: The wrench is designed with a 15-degree angle, enabling effective use in confined spaces where maneuverability is limited.
- Wider Jaw Opening: With an 18% to 25% increase in jaw opening compared to standard models, the AP Series accommodates a broader range of fastener sizes, enhancing its utility across various tasks.

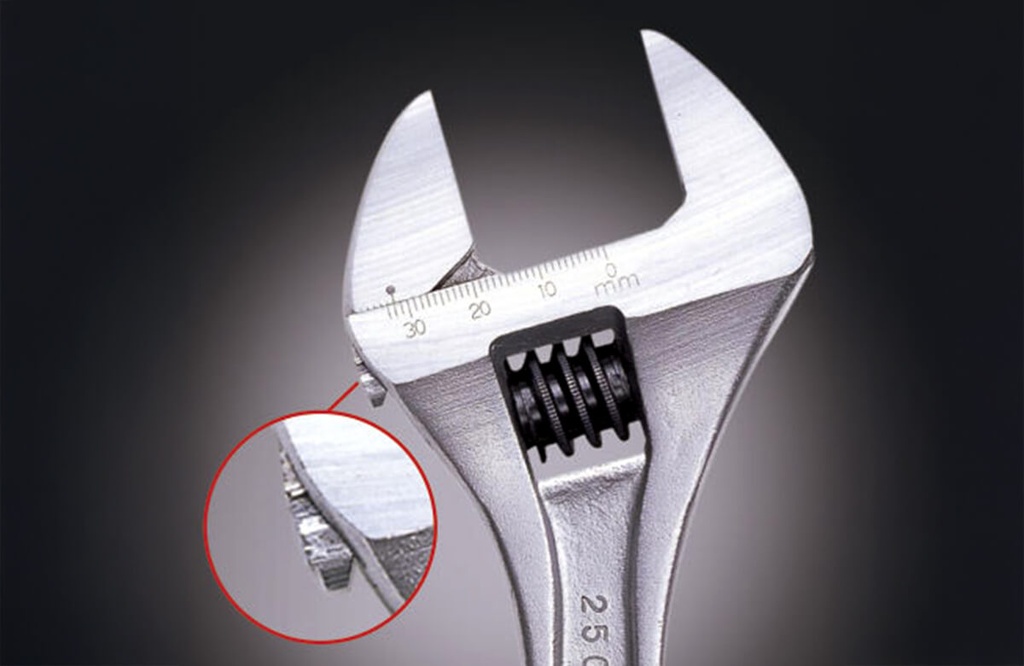

- Space-Saving Design: The non-protruding movable jaw end allows for easier operation in tight areas, reducing the risk of snagging or obstruction.

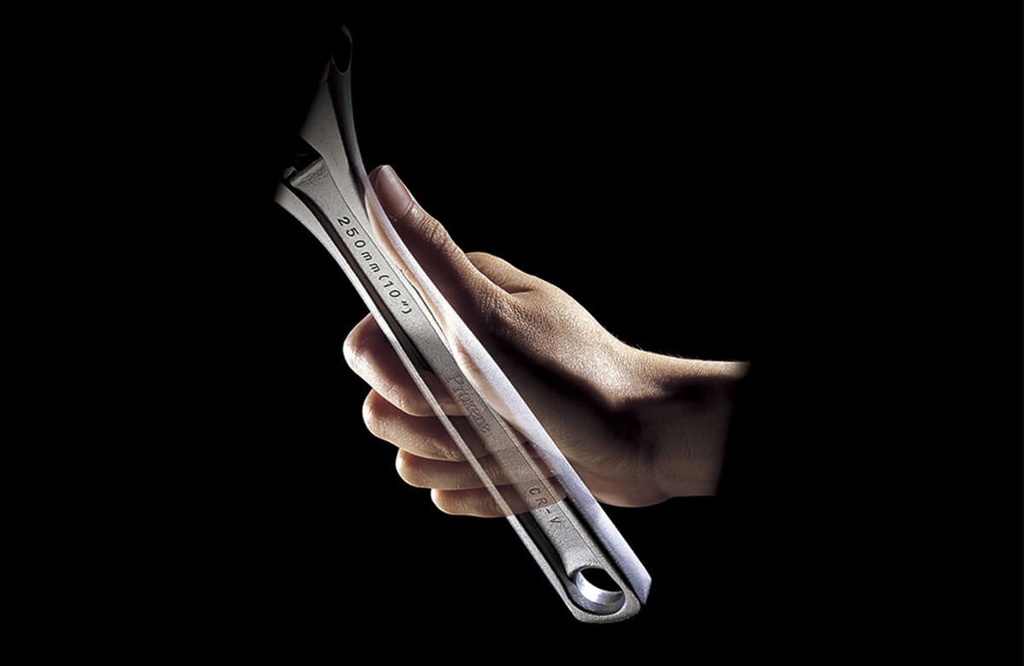

- Robust Handle: The handle is 60% thicker, providing a more comfortable grip and allowing users to apply greater force with less effort.
- Uniform Mechanical Grinding: The face of the wrench undergoes uniform mechanical grinding, resulting in a flat, strong, and distinctly industrial appearance.
Application Industries #
The AP Series is suitable for a wide range of industries, including:
- Aviation
- Automotive
- Working at Height
- Mining
- Military
- Rail
- MRO (Maintenance, Repair, and Operations)
Technical Specifications #
| Size (Inch) (mm) | Standard Jaw Opening (mm) | Max. Opening of the Jaw (mm) | Using Range for Metric Hexagon Nut’s Size | Using Range for SAE Hexagon Nut’s Size |
|---|---|---|---|---|
| 4" (100mm) | 13 | ≥ 17 | M1~M10 | W1/8~W3/8 |
| 6" (150mm) | 20 | ≥ 23.9 | M1~M16 | W1/8~W1/2 |
| 8" (200mm) | 24 | ≥ 28.6 | M1~M18 | W1/8~W5/8 |
| 10" (250mm) | 29 | ≥ 32.8 | M1~M22 | W1/8~W3/4 |
| 12" (300mm) | 34 | ≥ 38.1 | M1~M24 | W1/8~W7/8 |
| 15" (375mm) | 43 | ≥ 50 | M1~M33 | W1/8~W1-1/4 |
| 18" (450mm) | 53 | ≥ 60 | M1~M39 | W1/8~W1-1/2 |
| 24" (600mm) | 62 | ≥ 70 | M1~M45 | W1/8~W1-3/4 |
